Carrera Go / 143

3D-Druck Projekte (de)

Die 3D-Druck-Projekte fügen eurer Carrerabahn 40 mm oder 57 mm breite Randstreifen und andere Dekorationen hinzu. Mit den Randstreifen wird das Fahren bzw. Driften mit magnetfreien Autos (z.B. SCX Compact) möglich! Zusätzlich gibt es eine optionale - 3 mm breite - Steckenbegrenzungslinie.

Download & Links:
40 mm Randstreifen: www.thingiverse.com/thing:5776023
57 mm Randstreifen: www.thingiverse.com/thing:5821299
Begrenzungslinien: www.thingiverse.com/thing:5807029
Endstück: www.thingiverse.com/thing:5854061
Gymkhana Pendel & Mast: www.thingiverse.com/thing:5873880

Video der Randsstreifen: www.youtube.com/watch?v=1u6cYjKVWMs

Website: Race.Vision

3D printing projects (en)

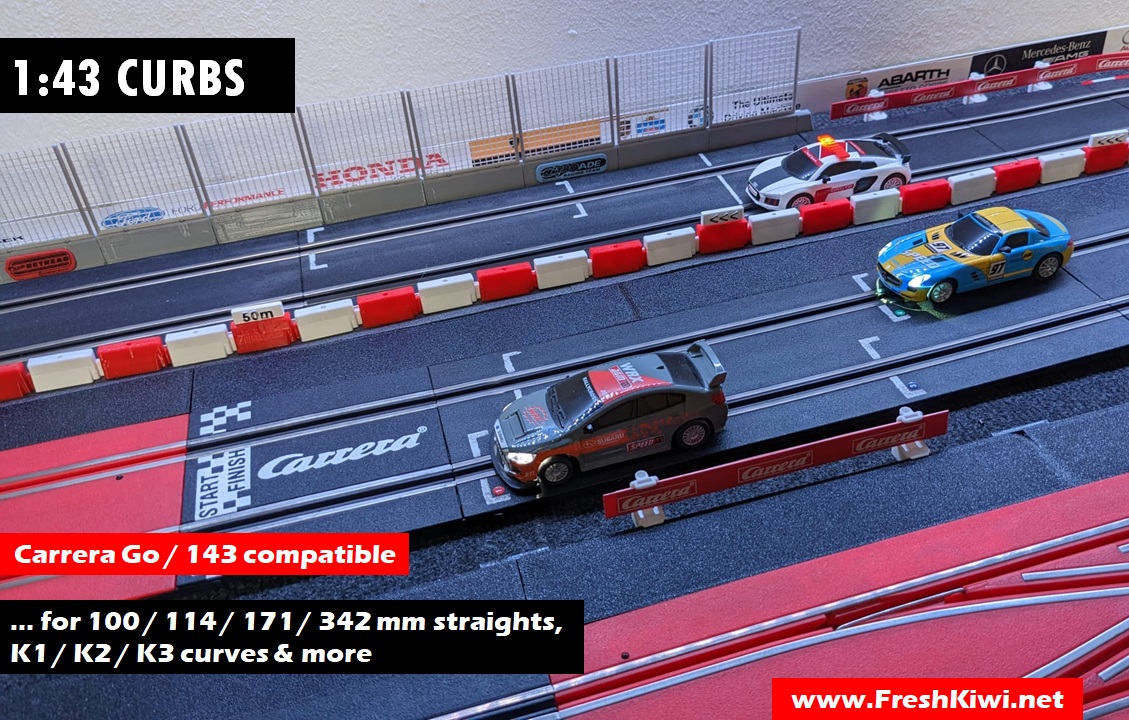

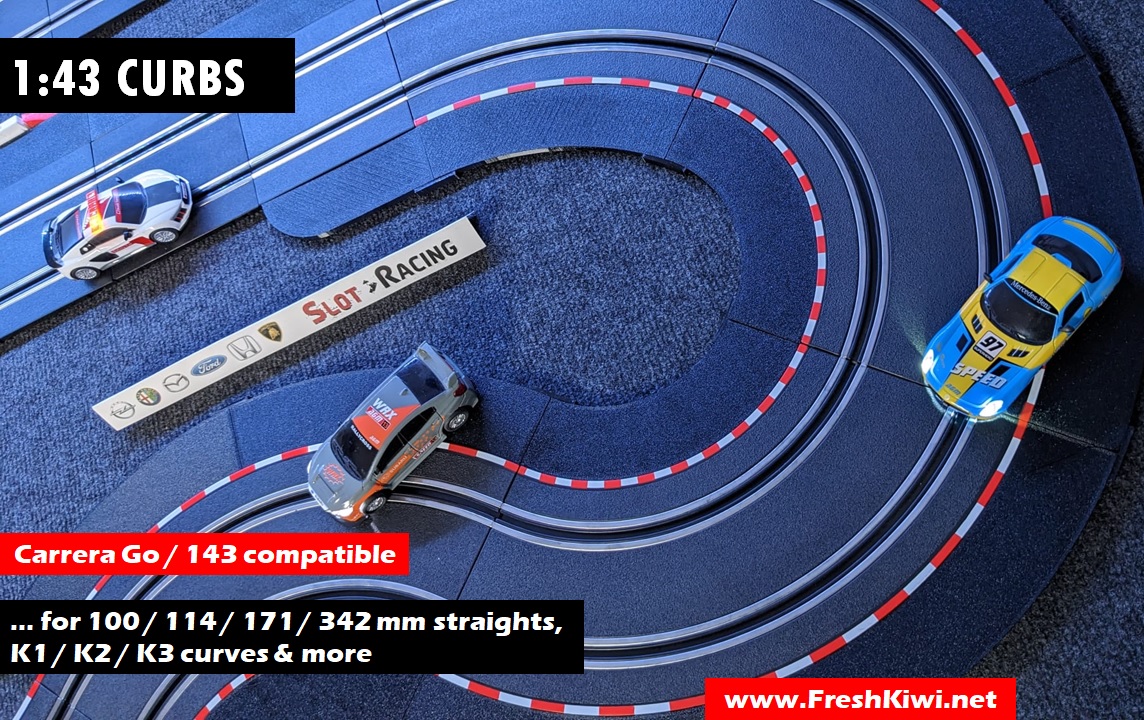

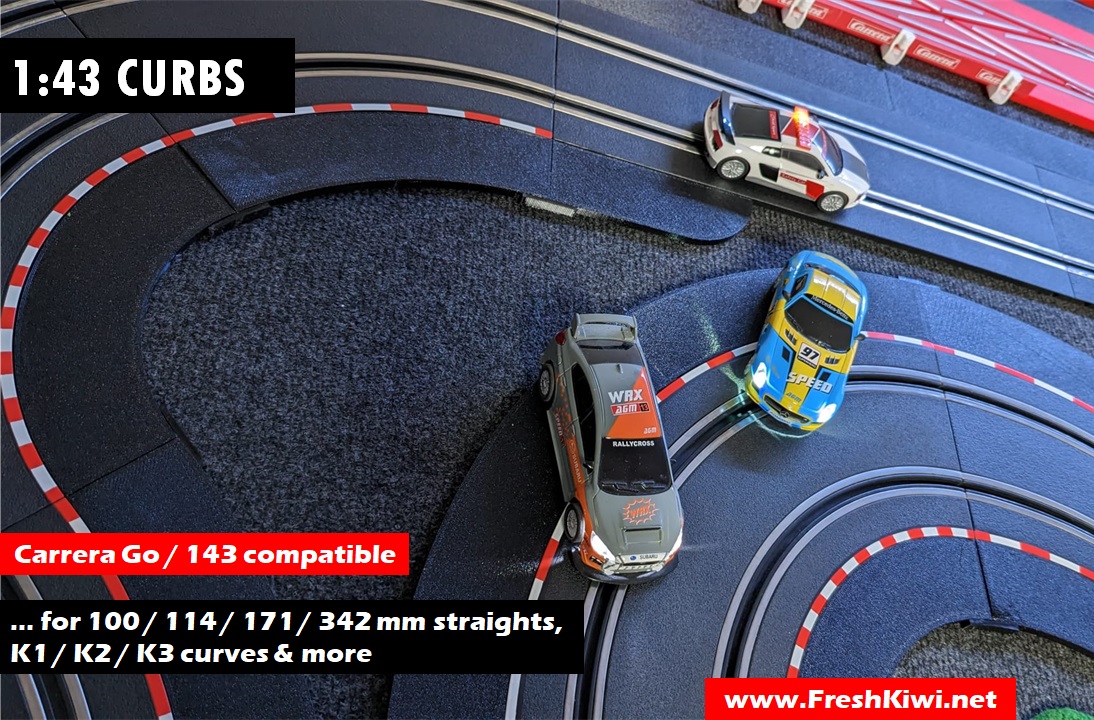

These 3d printing projects add 40 mm or 57 mm wide curbs and other decorations to your Carrera GO / Digital 143 track. The curbs are needed for driving or drifting cars (e.g. SCX Compact) without magnet! There is also a optional 3mm wide track boundary available.

Download & Links:
40 mm curbs: www.thingiverse.com/thing:5776023
57 mm curbs: www.thingiverse.com/thing:5821299
Boundary: www.thingiverse.com/thing:5807029
Track End: www.thingiverse.com/thing:5854061
Gymkhana Pendulum & Signpost: www.thingiverse.com/thing:5873880

Video of the curbs: www.youtube.com/watch?v=1u6cYjKVWMs

Website: Race.Vision

Part list for the curbs / Teileliste der Randstreifen

Straights

  • S100: For 100 mm straights
  • S114: For 114 mm straights or use 3 for a 342 mm standard straight
  • S114 end: For ending a curb section on a 114 or 342 mm straight
  • S171: For 171 mm half straights or use 2 for a 342 mm standard straight
  • S228 dual mount: For 2x 114 mm straights or for a 342 mm straight (e.g. in combination with S114)
  • S228 single mount: For track components with blocked mounting grooves (e.g. digital cross section, starting line, etc.)
  • SU: Universal and scalable curb for 20-100mm straights (scale the length in slicer) - Mount it between existing curbs as this parts has no mounting groove for the track

Curves

  • K1-45 inner curb: For K1 45° only (NOT for K1 90°)
  • K1-90 inner curb: For K1 90° only (NOT for K1 45°)
  • K1-45 outer curb: For K1 45° and 2x for K1 90°
  • K2-45 inner curb: For K2 45°
  • K2-45 outer curb: For K2 45°
  • K2-22.5 outer curb: 2x for K2 45° (for smaller printers)
  • K3-45 inner curb: 2x for K3 45°
  • K3-22.5 inner curb: 2x for K3 45° (for smaller printers)
  • K3-22.5 outer curb: 2x for K3 45°

Accessory

  • Clips C-C (Curb to Curb): Connects 2 curbs with each other
  • Riser 10 mm: Used to rise the curbs for digital track components with 10 mm height
  • Riser 8 mm: Used for the transition to 6 mm track height
  • Riser universal: Use for individual heights (specify the height in your slicer)
  • Additional track boundaries: www.thingiverse.com/thing:5807029

Notes

  • If you have a large printer you can simple put the parts together in the slicer (e.g. 114 mm + 228 mm curb = 342 mm curb for the standard straight)
  • Mirror asymmetric parts in your slicer if you need it for the other side
  • My print resolution was 0.24 mm (clips: 0.16). The curbs are printed upside down and use support for the mounting structures. I also use a heated bed with 85°C to avoid warping on the edges.
