Meine Filament Box (de)

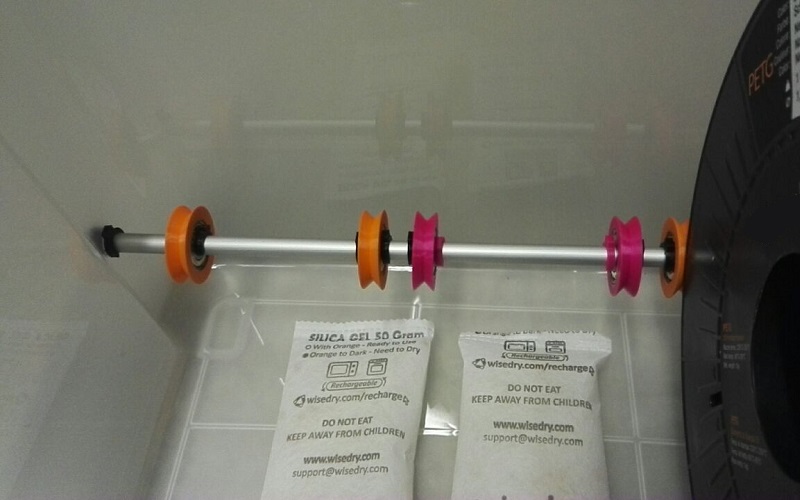

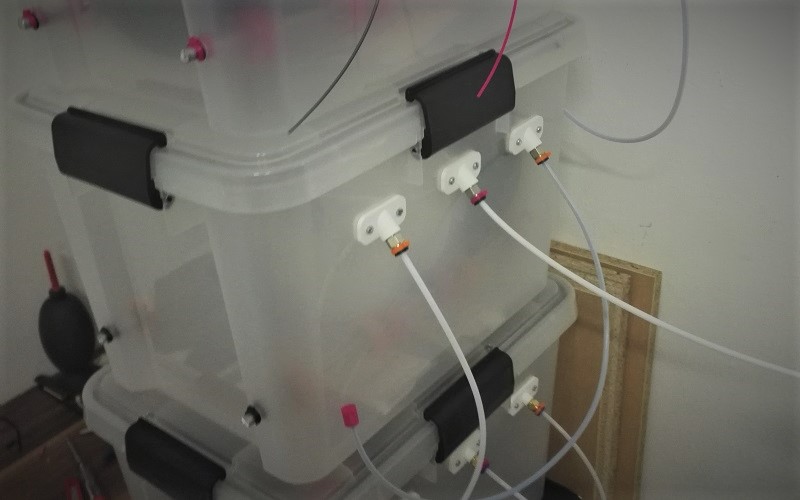

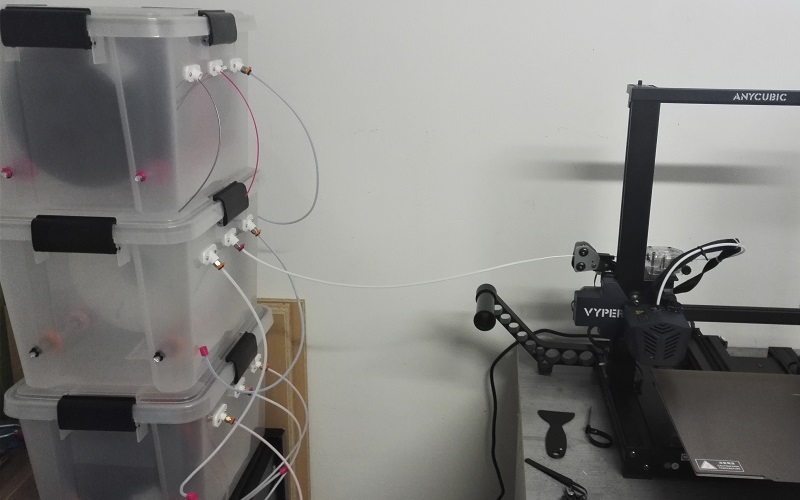

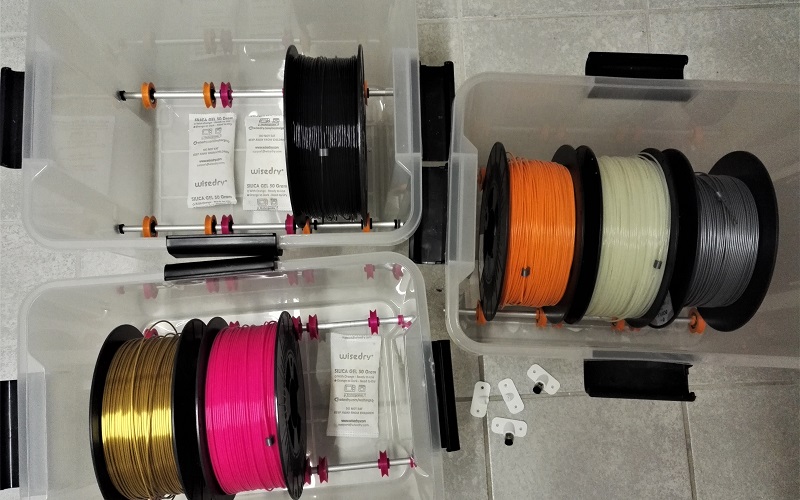

Die Box soll das Filament trocken halten und vor Staub schützen. Der Aufbau ist im Prinzip sehr einfach: Es werden vier Löcher (8 mm) für die Aluminiumstange in die Box gebohrt. Auf die Stange werden die Kugellager mit den gedruckten Filamentrollenhaltern geschoben. Die Clips fixieren die Position der Stangen und Rollen. Drei weitere Löcher (3 mm) werden für die Schlauchauslässe benötigt, diese werden mit M3 Schrauben und Muttern fixiert. Abschließend wird auf den Boxenboden Silicagel zur Feuchtigkeitsaufnahme gelegt. Dieses Silikat kann aufbereitet und wieder verwendet werden.

Komponentenliste für EINE Box

  • Luftdichte Aufbewahrungsbox (z.B. Iris Ohyama 20L von Amazon)
  • 100g regenerierbars Silicagel (z.B. Wisedry von Amazon)
  •
  • 2x 8mm Aluminiumstange (Baumarkt)
  • 12x 608 Kugellager - 4 je Filament (z.B. Amazon)
  • 12x Rollen - 4 je Filament (Thingiverse)
  • 35x Clips - 8 je Filament + 11 je Box zusätzlich (Clamp von Thingiverse)
  • 4x O-Ring als Dichtung zwischen Stange und Box
  •
  • 3x M6 oder M10 Anschlüsse (Thingiverse)
  • 6x M3x10 Schrauben und M3 Muttern (Baumarkt)
  • 3x M6 oder M10 Fittinge für PTFE Schlauch (z.B. Amazon)
  • 3x PTFE Schlauch (z.B. Amazon)
  • 3x PTFE Schlauchverschluss (PTFE Cap von Thingiverse)

Die Kosten betragen rund 30 Euro pro Box (ohne Druckteile).

My Filament Box (en)

The box is designed to keep the filament dry and protect it from dust. The construction is very simple: Four holes (8 mm) are drilled in the box for the aluminum rod. The ball bearings with the printed filament roll holders are pushed onto the rod. The clips fix the position of the rods and rollers. Three more holes (3 mm) are needed for the hose outlets, these are fixed with M3 screws and nuts. Finally, silica gel is placed on the box floor to absorb moisture. This silicate can be processed and reused.

Component list for ONE box

  • Air tight storage box (e.g. Iris Ohyama 20L from Amazon)
  • 100g regenerative silica gel (e.g. Wisedry from Amazon)
  •
  • 2x 8mm aluminium rod (hardware store)
  • 12x 608 ball bearing - 4 per filament (e.g. Amazon)
  • 12x roller - 4 per filament (Thingiverse)
  • 35x Clips - 8 per filament + 11 per box in addition (Clamp from Thingiverse)
  • 4x O-ring as seal between rod and box
  •
  • 3x M6 or M10 connectors (Thingiverse)
  • 6x M3x10 screws and M3 nut (hardware store)
  • 3x M6 or M10 fitting for PTFE tube (e.g. Amazon)
  • 3x PTFE tube (e.g. Amazon)
  • 3x PTFE tube cap (PTFE Cap from Thingiverse)

The costs are about 30 Euro per box (without printed parts).
